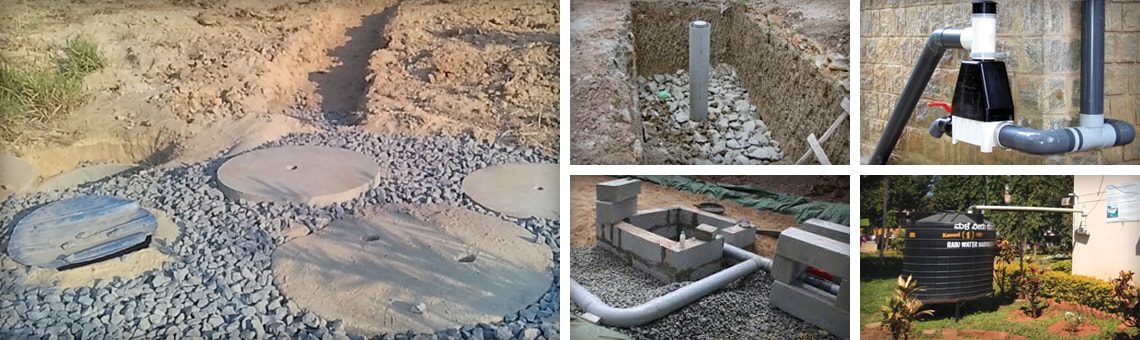

Ground Water Recharge Structure In Ahmedabad
It is soaking the unwanted waste water and rain water in the soil to increase the ground water.
With ever increasing withdrawals ground water goes down and the well will dry up. As ground water water becomes more salty.
More so in coastal towns.
You can help solve this problem if you wish to. The water you collect from your roof itself during the rainy season can meet
1/3rd of your can do so by the following methods.:
You can store your rain water in closed containers and reuse it to water your garden, wash your clothes, wash your dishes
etc.
You can water you garden by directing your garden by directing your kitchen and bath waste waters.
If you are having a well or a borewell you can direct the rain water from your can direct the rain water from your roof through
a collecting pipe. A sand filter bed may be installed, if you desire to filter the rainwater before
it enters to your well.
Advantage Of Ground Water Recharge Structure
- Recharge of Groundwater, replenishes the deeper layers of the earth’s crust which in turn insulates the earth from rise in temperature, reducing global warming
- Reduces hardness, salinity and TDS contents in the bore well
- Seawater ingression can be checked in coastal line
- Reduces significant carbon foot prints
- Checks overexploitation of groundwater source
- Prevents water logging in low lying areas
Technical Details Of Ground Water Recharge
The V wire screen is of stainless steel material, grade S.S 304, Cage type trapezoidal wire wound screen Screen is evenly
distributed with continuous slot opening of 0.75 MM, so that it has more open area for minimum turbulence
and Loss of energy
The trapezoidal V shape inwardly widening slots are non Clogging, so that sediments have only point contact. V-Wire Screens
offer many advantages including a continuous slot opening which significantly increases the available
open area, thus providing greater access to the water bearing zone. A "V" shaped profile wire which
avoids clogging and ensures an uninterrupted flow. It allows a uniform and efficient well development
due to the continuous slot opening. Ladder-like wire welded screens have a strong structure and high
open area, as well as accurate slot dimension. These screens have the features of easy backwashing,
last long, safety and reliability as well as low comprehensive cost
